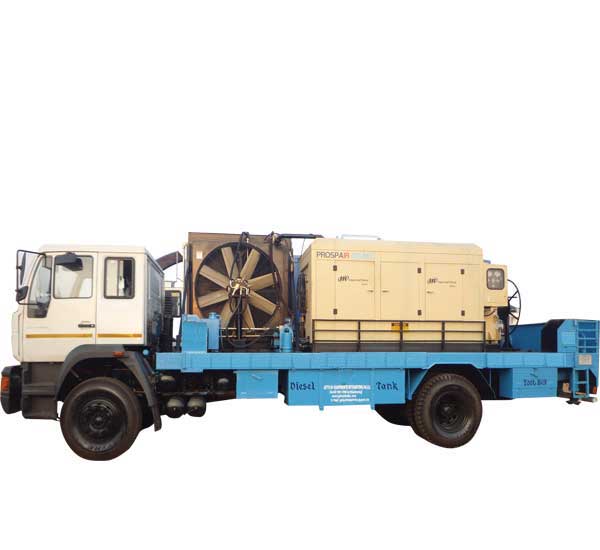

PRO DTHR 450 Model, Hydraulically operated Top Drive DTH Cum ROTARY drilling rig is capable of drilling in different formations such as medium to hard Rock by DTH, Unconsolidated/Alluvial formations using Mud Rotary method up to a depth of 450 Meters, under favorable drilling conditions

PRO DTHR 450

  • Application : Water Well Drilling
  • Type Of Drilling : Both DTH and ROTARY
  • Hole Dia : 8” (DTH)
  • : 12 ¼ “ (ROTARY)
  • Max. Over Burden Dia : 12”
  • Mast Overall Length : 9000mm
  • FEED System Pull Back : 16,500Kgf
  • FEED System Pull Down : 9,600Kgf
  • FEED System-Pull Up Speed : 40m/min
  • ROTARY Head Torque : 600Kg-m
  • ROTARY Head Speed : 0-100rpm
  • MUD Pump : 6” x 8”
  • Air Compressor : 1200CFM x330PSI
