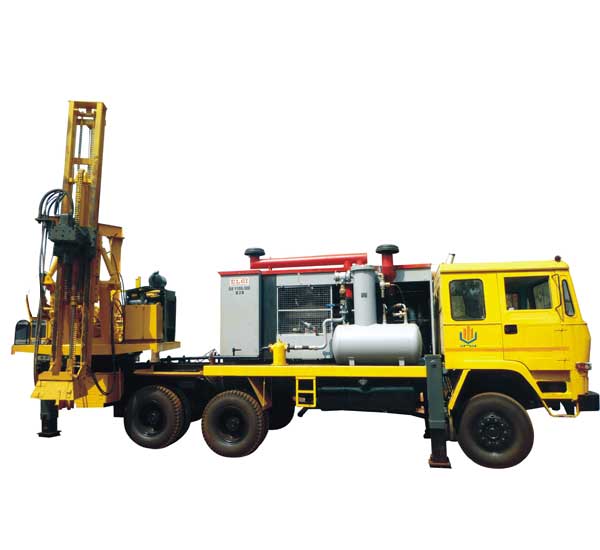

The PRO PHDR 5 drill rig is ideal for water well drilling application in rock formation. Thanks to its simple and compact design, excellent performance, high accessibility and reliability at afford cost in its class. The PRO PHDR 5 rig’s flexibility means it can be mounted on single truck version, two truck versions and on local truck matching the rig to the terrain it will be used.

PRO PHDR 5

  • Proven technology ensures easy maintenance and more productive.
  • The rig can be customize as per customer requirement
  • All the actuators are operated by proportional control valves
  • Rig platform horizontal swing ±120º
  • Rig platform horizontal slide 900mm
  • Mast swing and sliding
  • Drill rod handling 8.2 feet (2.5 meter)
  • Drilling depth up to 10 feet (3 meters)
  • Drilling diameter 10 inch (254mm) - 15 inch (381mm)
  • Pull up force 8,600 kgf
  • Drill head torque 600 kg.m
  • Air compressor 1,100 cfm/300 psi
  • Contact us for higher drilling depth and drilling diameter.
  • Optional: Auger drilling
